High voltage insulation tester benetech gm3123

Description

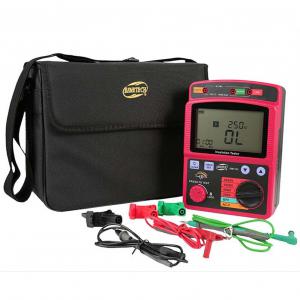

BENETECH High voltage insulation tester GM3123 High voltage insulation tester

High-voltage megohmmeter GM3123

Rated voltage: 250V/500V/1000V/2500V

Measuring range: 250V: 0.0~499MΩ500V: 0.0~999MΩ; 1000V: 0.0~19.9GΩ2500V: 0.0~99.9GΩ

Accuracy: ±5% rdg±5%dgt

DC/AC voltage test: 30~600V

Resolution: 1.0V

Overload protection: AC 1200V/10 seconds

Withstand voltage: AC8320V/5 seconds

Insulation resistance: 1000MΩ/DC1000V

Maximum short circuit current: 1.3mA

Working voltage: 12V

Power: 8*1.5V LR14 alkaline battery

Product size: 153*96*220mm

Number of standard cases: 3PCS

Standard box size: 44.5*33.0*28.5CM

Standard box gross weight: 7.2KG
