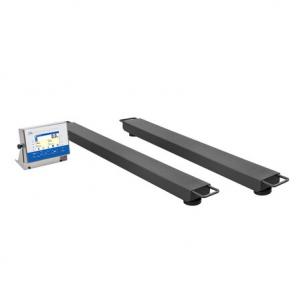

Weight scale radwag hx7.4p2
Add to Wishlist
With use of the bracket you can either place the indicator at any flat horizontal surface or fix it to the wall adjusting the tilt respectively to suit your needs.
Availability:
1 in stock
Contact for a quote.
Request for Quotationช่องทางการสั่งซื้ออื่น ๆ
ติดต่อทาง Line
@santatech
ติดต่อทางอีเมล์
santatech@gmail.com
ติดต่อทางโทรศัพท์
02-1013454
Description
Weight scale radwag hx7.4p2
Maximum capacity [Max]600 kg
Minimum load4 kg
Readability [d]200 g
Tare range-600 kg
Verification scale interval200 g
Reading unit200 g
OIML ClassIII
Display7” graphic colour
Protection classIP 65 construction, IP 66/68 indicator
USB Interface1× standard, 1× option
ETHERNET Interface1× standard
RS232 Interface1× standard, 1× option
1× option
IN/OUT Interface4 IN 4 OUT standard, 12 IN 12 OUT option
Analog output module (option)4-20mA, 0-10V
Power supply100 ÷ 240 V AC 50 / 60 Hz
Power consumption max.25 W
Optional power supply12-24V DC
Operating temperature-10 ÷ +40 °C
Storage temperature-10 ÷ +50 °C
Atmospheric humidity10% ÷ 80% RH no condensation
IndicatorPUE HX7
Keypadmembrane
Number of buttons22
ConstructionStal malowana proszkowo St3S
Weighing pan dimensions2 pcs 1.2 m
Packaging dimensions1400×400×670 mm
Net weight39.7 kg
Gross weight55.3 kg
Max number of platforms2
