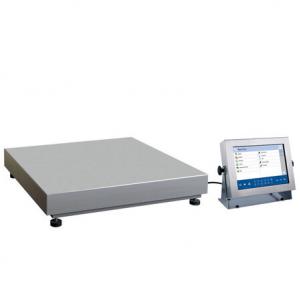

Weight scale radwag hy10.150.hrp.h.m3
Add to Wishlist
An extensive database enables archiving work results and periodic reports data exchange between indicators and information import and export. Images database allows to assign a graphic to each weighing product.
Availability:
1 in stock
Contact for a quote.
Request for Quotationช่องทางการสั่งซื้ออื่น ๆ
ติดต่อทาง Line
@santatech
ติดต่อทางอีเมล์
[email protected]
ติดต่อทางโทรศัพท์
02-1013454
Description
Weight scale radwag hy10.150.hrp.h.m3
Maximum capacity [Max]50 / 100 / 150 kg
Minimum load100 / 200 / 400 g
Preload range30 kg
Readability [d]5 / 10 / 20 g
Tare range-150 kg
Verification scale interval5 / 10 / 20 g
Maximum quantity of verification units10000 / 10000 / 7500 e
Repeatability1.5 g
Linearity±3 g
Stabilization time3 s
Adjustmentinternal (automatic)
OIML ClassIII
Display10.1” graphic colour touchscreen
Protection classIP 66/67 construction, IP 68/69 indicator
USB×2
Ethernet×1
RS232×2
Inputs/Outputs4IN / 4OUT
Power supply100 ÷ 240 V AC 50 / 60 Hz
Operating temperature+10 ÷ +40 °C
Atmospheric humidity40% ÷ 80%
Weighing pan dimensions800×600 mm
Net weight71.5 kg
Gross weight119 kg
