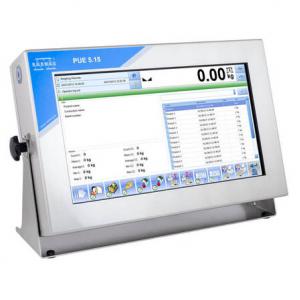

เครื่องชั่ง Weight scale radwag pue 5.15c

รายละเอียด

เครื่องชั่ง Weight scale radwag pue 5.15c

Maximum quantity of verification units6000 e

OIML ClassIII

Display15.6” graphic colour touchscreen

Protection classIP 68

USB Interface4×USB 2.0 (2×USB-A, 2×M12 4P)

Ethernet2×10/100/1000 Mbit (2×RJ45 hermetic)

Profibus DP Interfaceoperation mode: slave

Serial Interface2×RS232, RS485 (2×M12 8P)

Inputs/Outputs (option)4IN / 4OUT (2×ports M12 8P or 2×cables fed through the cable gland)

Additional weighing platform moduleadditional max. 3 pcs (metrological parameters as in the main weighing platform)

External buttons PRINT, TARA, START (option)terminal with 4IN/4OUT (M12 8P connector) is required

Power supply100 ÷ 240 V AC 50 / 60 Hz

Power consumption max.50 W

Maximum quantity of divisions from converter838 860 ×10

Maximum increase of signal19.5 mV

Minimum volatge per verification unit0.4 µV

Maximum voltage per verification unit3.25 µV

Minimum load cell impedance80 Ω

Maximum load cell impedance1200 Ω

Load cell excitation voltage5V DC

Connection of load cells4 or 6 wires + shield

Operating temperature0 ÷ +40 °C

Atmospheric humidity10% ÷ 85% RH no condensation

Touch panelcapacitive

Housingstainless steel

Operating systemMicrosoft Windows 7 Embedded

ProcessorIntel® Pentium® N3710 on-board SoC (2.56GHz, quad-core, 2MB cache)

ChipsetIntel® HD Graphics Gen 7

Memory4GB 1066/1333 MHz DDR3L max 8 GB

Data memorySSD 128 GB

Packaging dimensions560×360×240 mm

Net weight10.5 kg

Gross weight11.5 kg
